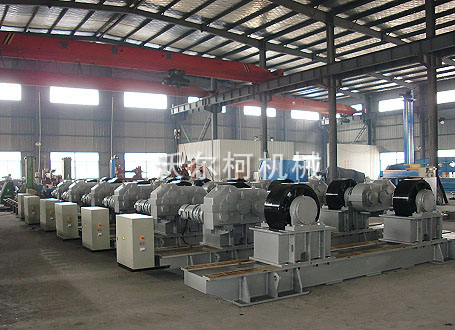

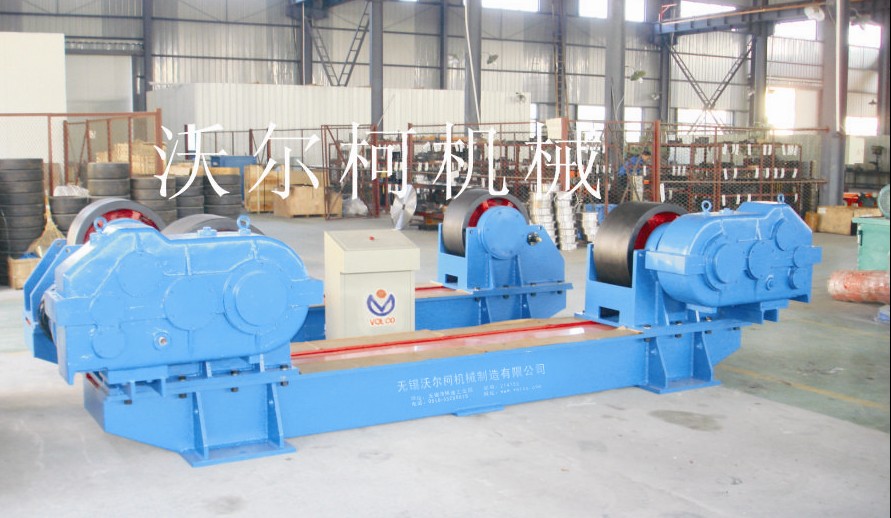

XHGK 可调式焊接滚轮架 | | |
规格型号
|
XHGK2
|
XHGK5
|
XHGK10
|
XHGK20
|
XHGK40
|
XHGK60
|
XHGK80
|
XHGK100
|
XHGK160
|
XHGK250
|
XHGK400
|
XHGK500
|
XHGK630
|
XHGK800
|
XHGK1000
|
大承重 T
|
2
|
5
|
10
|
20
|
40
|
60
|
80
|
100
|
160
|
250
|
400
|
500
|
630
|
800
|
1000
|
工件范围
|
dmm
|
250
|
250
|
320
|
500
|
600
|
700
|
700
|
700
|
1000
|
1000
|
1000
|
1000
|
1000
|
1500
|
1500
|
Dmm
|
1800
|
2300
|
2800
|
3000
|
4200
|
5000
|
5500
|
6000
|
6000
|
7500
|
7500
|
8000
|
8500
|
9000
|
10000
|
橡胶轮
|
D1mm
|
200
|
250
|
300
|
350
|
400
|
450
|
500
|
550
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
W3mm
|
80
|
100
|
120
|
120
|
120
|
120
|
120
|
120
|
-
|
-
|
-
|
-
|
-
|
-
|
-
|
金属轮
|
D2mm
|
190
|
240
|
290
|
340
|
394
|
444
|
490
|
538
|
620
|
700
|
800
|
800
|
850
|
1000
|
1000
|
W4mm
|
16
|
20
|
38
|
45
|
60
|
70
|
70
|
100
|
220
|
360
|
300
|
300
|
350
|
350
|
350
|
线速度m/h
|
6-60
|
调速方式
|
变频无级调速
|
电机功率 kw
|
2*0.18
|
2*0.37
|
2*0.55
|
2*1.1
|
2*1.5
|
2*1.5
|
2*2.2
|
2*2.2
|
2*4
|
2*5.5
|
2*5.5
|
2*5.5
|
2*7.5
|
2*7.5
|
2*11
|

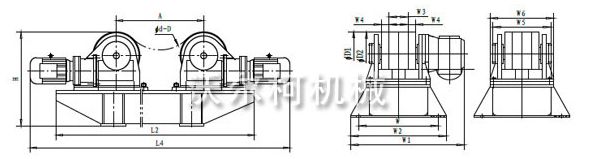

外形尺寸
|
主动
|
L2mm
|
1460
|
1550
|
2320
|
2500
|
2900
|
3160
|
3400
|
3800
|
4000
|
5500
|
5500
|
5750
|
6000
|
6500
|
7000
|
L4mm
|
1968
|
2090
|
2772
|
3144
|
3310
|
4100
|
4500
|
4800
|
4900
|
6550
|
6600
|
6850
|
7200
|
7700
|
8500
|
W1mm
|
457
|
503
|
671
|
674
|
710
|
875
|
922
|
970
|
1000
|
1000
|
1280
|
1280
|
1440
|
1480
|
1660
|
从动
|
W2mm
|
400
|
400
|
500
|
500
|
600
|
660
|
700
|
760
|
800
|
920
|
1000
|
1000
|
1260
|
1260
|
1320
|
W6mm
|
280
|
300
|
400
|
400
|
470
|
540
|
580
|
620
|
650
|
720
|
800
|
800
|
860
|
900
|
960
|
Hmm
|
451
|
485
|
590
|
615
|
715
|
830
|
900
|
975
|
1060
|
1060
|
1180
|
1350
|
1350
|
1550
|
1550
|
滚轮距
|
Min mm
|
260
|
400
|
400
|
450
|
800
|
880
|
900
|
1000
|
800
|
1200
|
1200
|
1200
|
1300
|
1340
|
1340
|
Max mm
|
1160
|
1200
|
1780
|
1950
|
2000
|
2200
|
2500
|
2800
|
2800
|
3400
|
3600
|
3800
|
3900
|
4540
|
4770
|
设备重量kg
|
400
|
640
|
1200
|
1450
|
2300
|
3860
|
4780
|
5800
|
7400
|
9950
|
17500
|
22800
|
26000
|
28600
|
34000
|
以上为本公司标准型号及参数 可根据客户要求进行定型设计、制造
|
